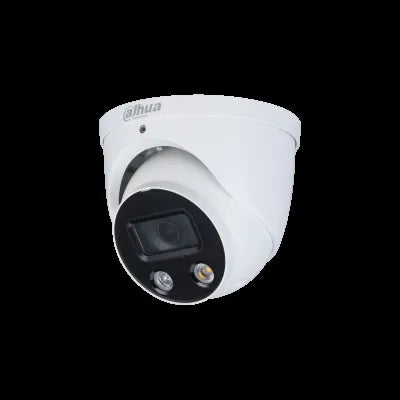

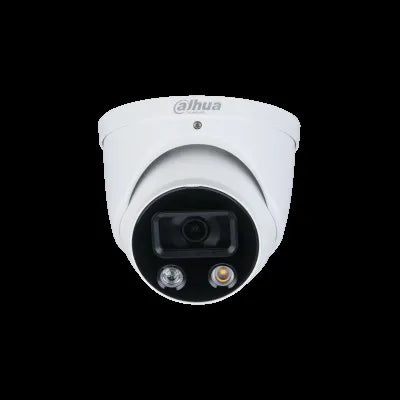

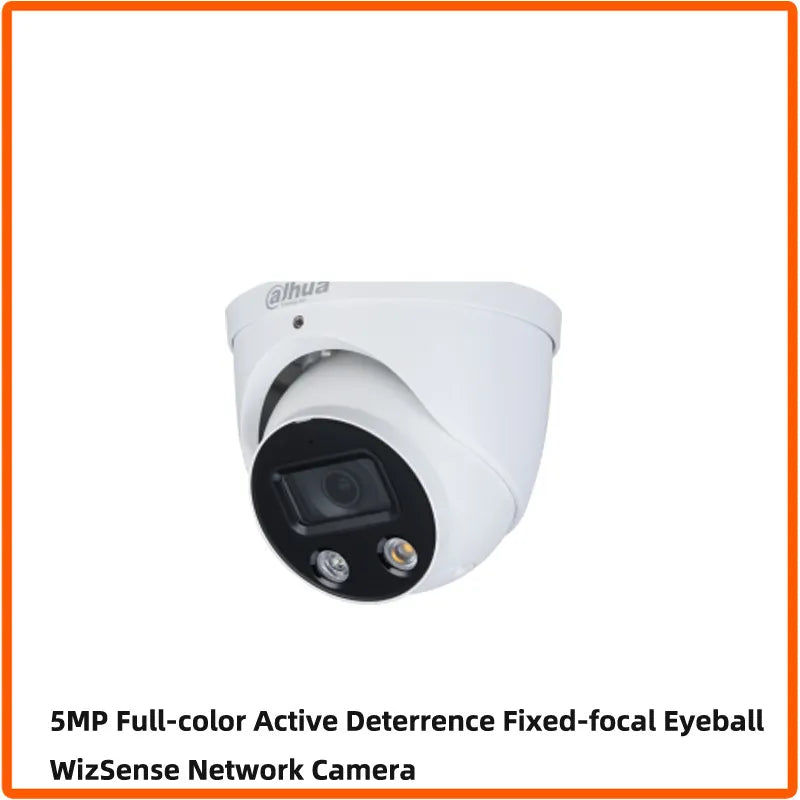

English Version 5 Million Full Color POE Network Camera

English Version 5 Million Full Color POE Network Camera

Product Attributes:

Electronic

Material:

Plastic, Metal, Others

Package Size:

144 * 144 * 130 mm

Description

Product information:

1/2.7”5Megapixel progressive CMOS

Max. Resolution：2592 (H) × 1944 (V)

ROM：128 MB

RAM：512 MB

Scanning System：Progressive

Electronic Shutter Speed：Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:0.003 Lux @ F1.0

S/N Ratio:> 56 dB

Illumination Distance:30 m (98.4 ft)

Illuminator On/Off Control:Auto/Manual

Illuminator Number:1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Main stream: 2592 × 1944 @1-20 fps

2688 × 1520 @1-25/30 fps

Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps

Third stream: 1920 × 1080 @1-25/30 fps

Stream Capability:3 streams

Resolution:5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bit Rate Control:CBR/VBR

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night:Color/B/W

BLC:Yes

HLC:Yes

WDR:120 dB

Scene Self-adaptation (SSA):Yes

Packing list:

IP camera*1
